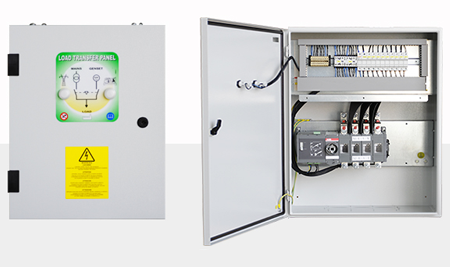

ATS-M is a new line of changeover switch panels for generating sets developed and produced by Visa S.p.A. in accordance with IEC standards CEI EN 61439-2 (construction standard) for powers up to and exceeding 125A.

Distinguished by a sturdy and reliable motorised or contact-powered control, the ATS panels allow the customer to carry out remote mains-genset or genset-genset switching operations.

KEY FEATURES:

• All the components are installed inside a powder coated metal case (RAL 7035), complete with lock on the access door.
• All auxiliary controls are available and clearly identified on a large terminal board; appropriate fuses protect the whole system.
• All of the ATS-M panels are equipped with sturdy terminal blocks to connect mains and genset power cables.
• All ATS-M panels are equipped with a handle for manual switching.
• All ATS-M panels are equipped with sturdy key-locks to close the front panel.
• The change-over between the Mains and genset or amongst gensets occurs through the activation of automatic functions on the control panel.
• The interface on the ATS panel activates or deactivates the switch gear and sends all the necessary information.

SAFETY EQUIPMENT

• Mechanical switching interlock
• Electronic switching interlock
• Protection fuses
• Terminal blocks for control connections
• Terminal blocks or bars for mains-genset connections
• Switching state displayed externally
• Steel panel coated with thermo-setting powder, with key
