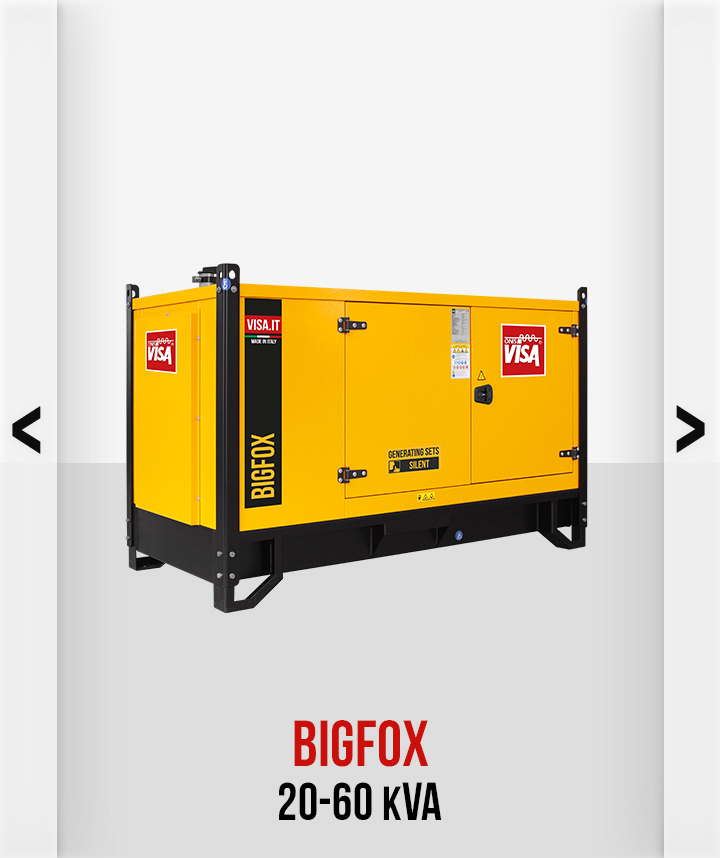

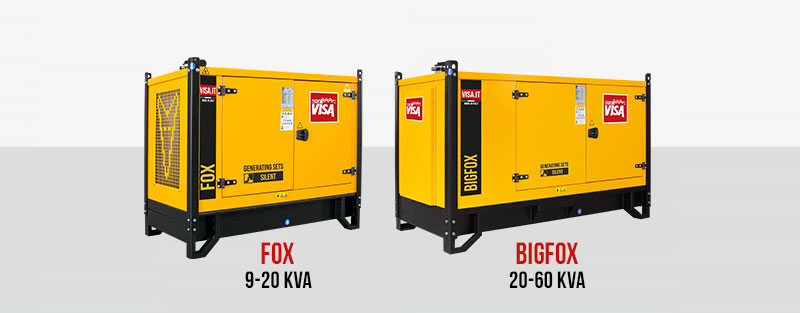

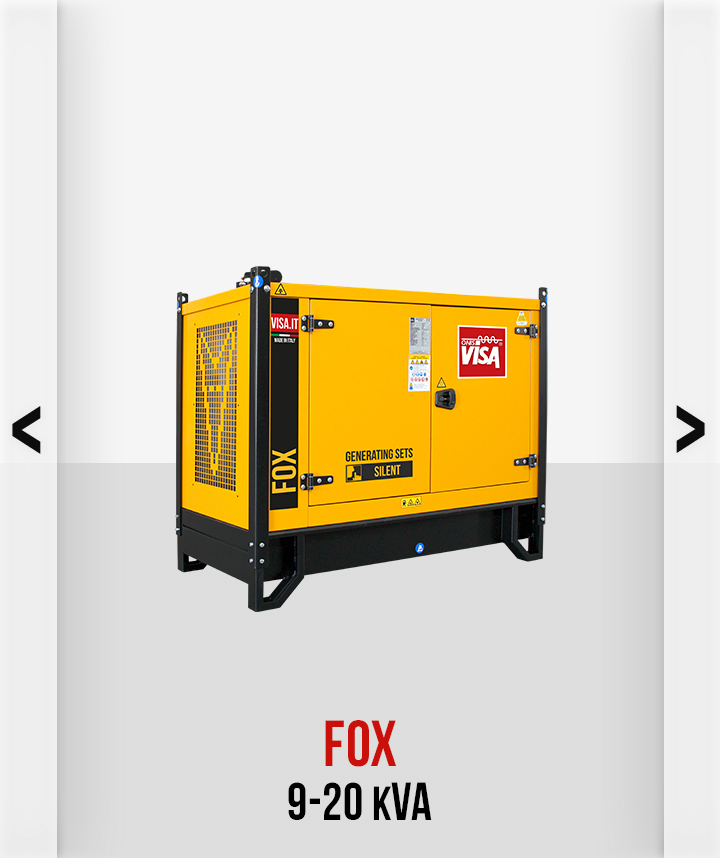

Onis Visa FOX and BiGFOX: the compact serie

The Fox range represents the most compact version of the industrial series, with power outputs ranging from 9 to 60 kVA at 50 or 60 Hz, it is suitable for a wide target of applications. Thanks to its compactness, low-noise and sturdy structure, the range is suitable to produce backup power to allow the full functionality of the systems in the event of any power outage or it can be used as uninterruptible power supply for example in the telecommunication sector where it is used in remote areas to supply BTS stations or in mountain refuge installations. Due to its technical features and a wide range of accessories which allows various degrees of customization, the Fox series can be easily used in many different sectors and weather conditions, even the most extreme ones. The modularity and dimensions of the Fox range allow the machine batches to be transported in containers, even with oversized fuel tanks.

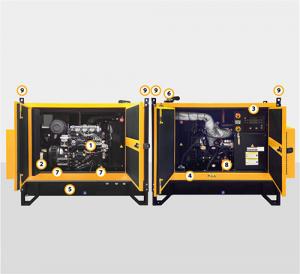

Equipment

1. Industrial diesel engine in genset version
2. Industrial brushless alternator with AVR

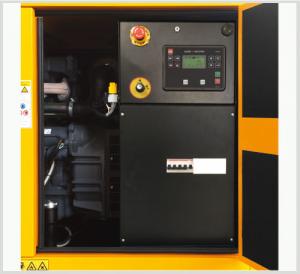

3. Controller, circuit breaker, cables mounted on board
4. Soundproof canopy in galvanised steel and powder coated paint
5. Compact steel baseframe with retention basin and 50 l fuel tank with electronic level sensor and setup for external tank plug-in connections
6. Semi-residential exhaust silencer + rain cap
7. High damping mounts for engine/alternator anti-vibration function
8. Engine oil extraction pump and fuel decanter filter
9. Lifting points on all 4 sides
10. Test report, manuals and electrical drawings supplied
11. Global after sales service and technical support

Further details on the technical data sheet

Key Points

• Compact and sturdy design
• Maximum noise reduction
• Complete access to main components
• Stackable in a 40’ container:
• Fox: up to 46 units in a 40’ HC container
• Bigfox: up to 24 units (Deutz) per container

Note - Distinctive characteristics of the range:

• Can also be supplied with separate oversize fuel tank
• Oversize fuel tanks in different sizes are available on request.
