Onis Visa POWERFULL U

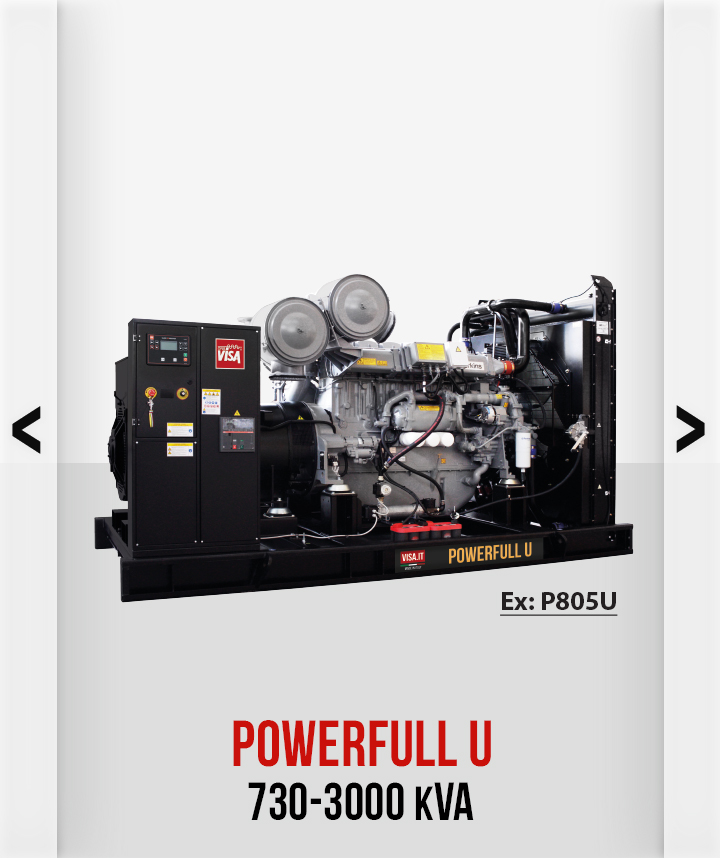

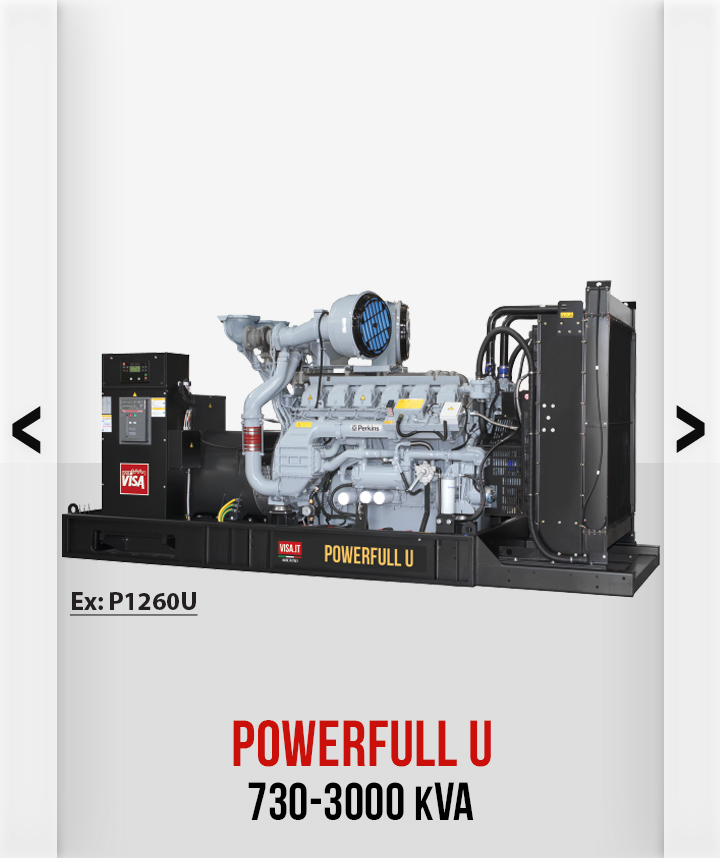

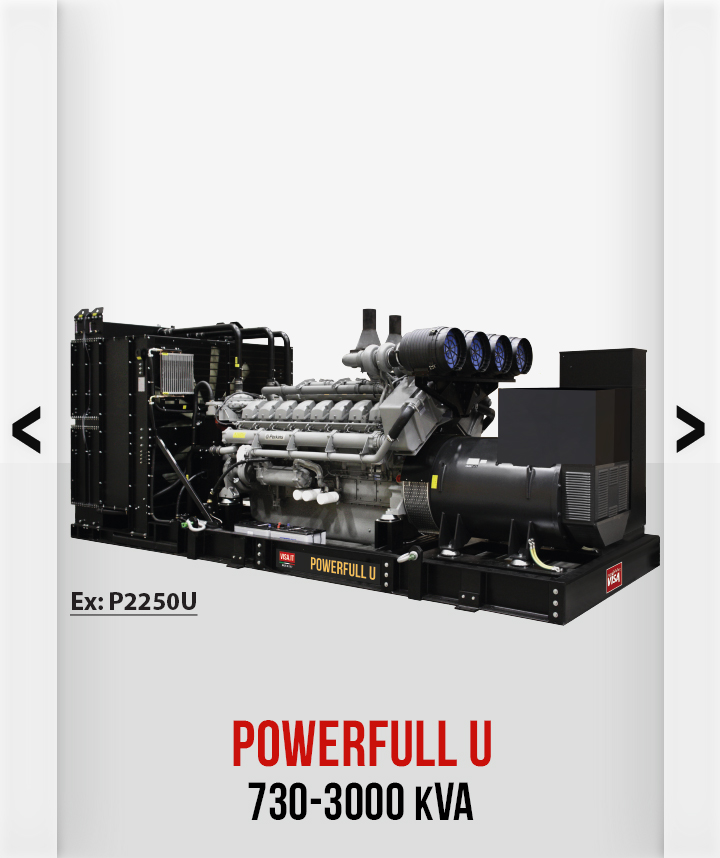

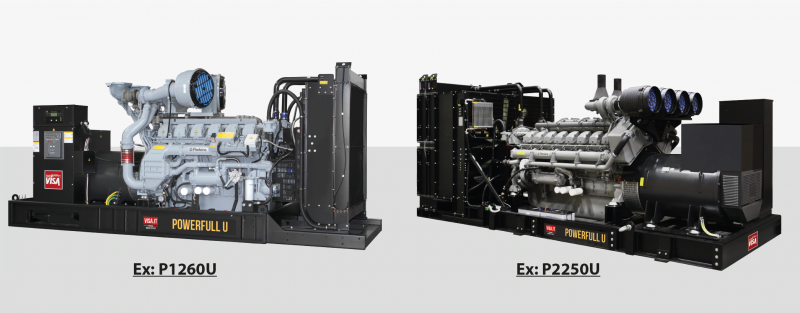

The Powerfull U series of generating sets ranges from 750 to 3000 kVA and is appreciated for the extreme sturdiness of the frame whose profiles are designed to achieve maximum compactness. Its structure allows the genset to be installed in indoor applications or inside containers. Standard or custom accessories can be installed on the baseframe satisfying customer specific needs and requirements. Lifting eyebolts allow the genset to be easily handled in complete safety. Different fuel-tank combinations are available on request.
Video:

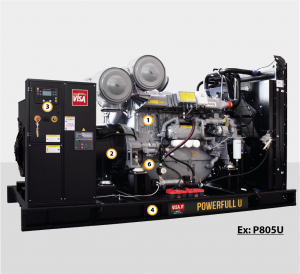

Equipment
- Industrial diesel engine in genset version
- Industrial brushless alternator with avr
- Controller, circuit breaker, cables mounted on board
- Modular steel baseframe
- Industrial silencer and coupling flange (supplied loose)
- Bell anti-vibration mounts
- Lifting eye bolts allow the genset to be easily handled in complete safety.
- Test report, manuals and electrical drawings supplied
- Global after sales service and technical support
Further details on the technical data sheet
Key Points
- Modular baseframe with U steel profiles
- Different tank combinations available: eg. without tank; 400 Lt + retention basin; 900 Lt., …)
Note - Distinctive characteristics of the range:
- Special base frame design on request
- Tropical radiator on request
1
2
3
4
5
6
7
8
CONTROL PANELS
Guard Revolution 4.0 control panel, developed in cooperation with Comap, allow the complete control and management of the Onis Visa genset: The simple and intuitive interface helps the user to better manage events and performances; The user can monitor the generator and interact through the control unit via APP or WEB page via internet; Stand-by (AMF) and prime-power (MRS) application in one unit; All-in-one intuitive & powerful PC tool for configuration/monitoring. Read More
AVAILABLE OPTIONS
ONIS VISA In Sync 500, a new paralleling genset controller equipped with a large 5” colour display and 800x480 resolution. The intelligent electronic control panel ONIS VISA InteliGen 500 is suitable for Onis Visa generating sets: it is a highly flexible, intuitive and scalable solution for generators parallel systems. By modifying a setpoint, it is possible to switch from Gen-to-Mains to Gen-to-Gen Parallel; Extra communications functions can be added using plug-in modules and the remote monitoring is included. On Board: Ethernet, RS485, USB. Onis Visa In Sync 500 is a perfect solution for rental, telecoms, events and other applications. Read More
ONIS VISA PW005 is the configuration that allows extreme freedom in configuring the machine for the end customer. Suitable for manufacturers and qualified electricians, it allows an external customised panel to be inserted according to the system's requirements thanks to the pre-configured connections.
All available operating and sensor cables coming from the engine and alternator are numbered to make it easy to connect them to your system and manage the machine completely. Read More
